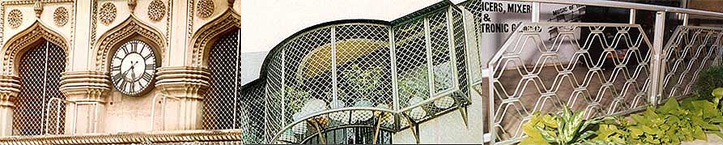

DECOGRILLE (7.5 MM)



A]         TECHNICAL SPECIFICATIONS:



1.     Material                                                Ø        Aluminium Alloy No.6063 - T6



2.     Ultimate tensile strength                     Ø         19kg/sq.m



3.     Elongation of 50mm GL                        Ø         14% Min.



4.     Yield strength (0.2%) Proof stress     Ø         6.5 Kg/Sq.mm min



5.     Brinell Hardness                                   Ø        (Typical) 50



6.     Modulus of elasticity                            Ø         Generally 7X10³ Kg/sq.m



7.    The anodizing will be carried out to the extent of 15 microns.

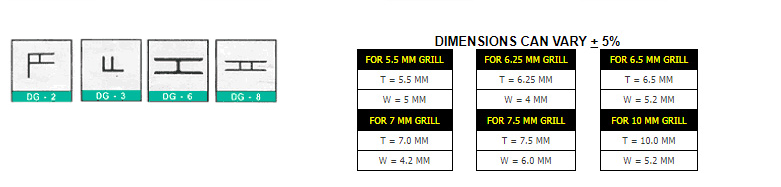

Please note Decogrille is made out of 7.5mm plate and finished Decogrille will have 7.5mm width and 6mm thick.



B]         STANDARD SIZES:

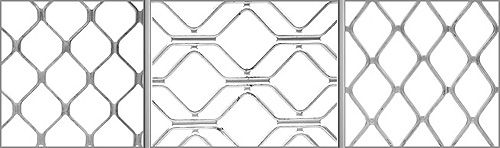

            Please refer to our attached Design catalogues.



C]         SPACING & WEIGHT



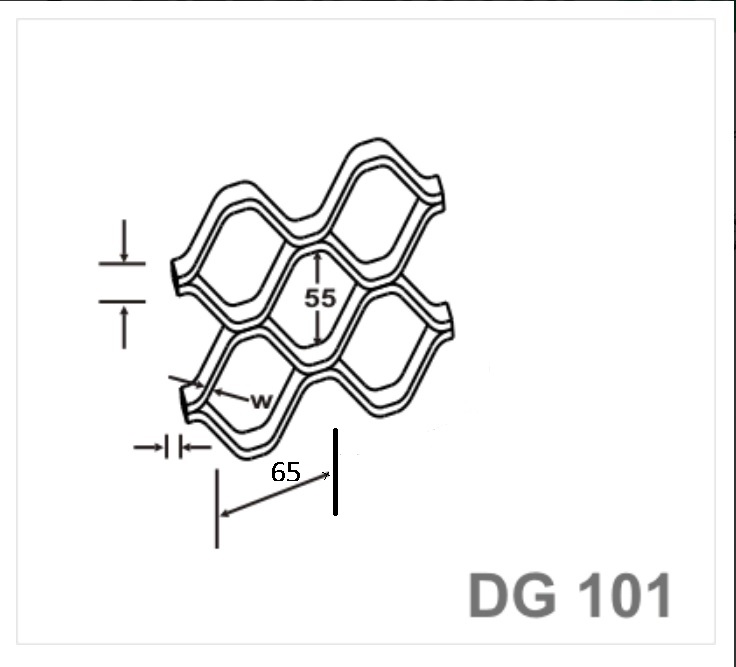

DESIGN	LENGTH	WIDTH (Expansion Size)	Weight /Sq.Mts (Kg)
DG-102	80 mm	66 mm	3.131

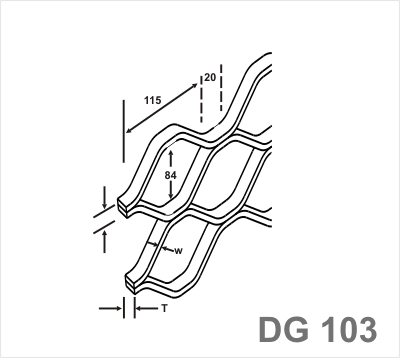

DG-103	113 mm	84 mm	2.561
DG-104	102 mm	99 mm	2.453

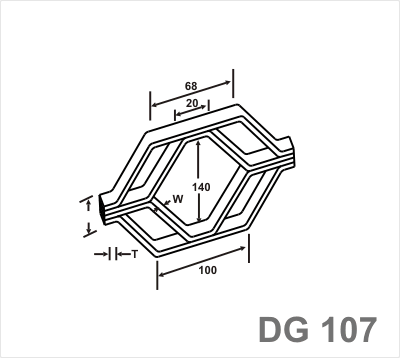

DG-107	100 mm	140 mm	3.411
DG-112	-	102 mm	3.648

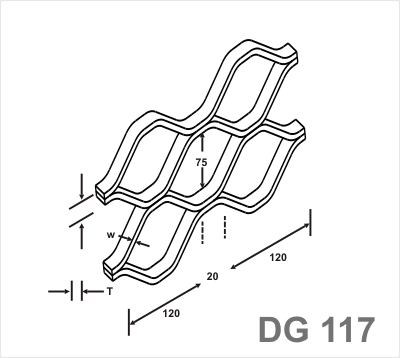

DG-117	120 mm	75 mm	2.647

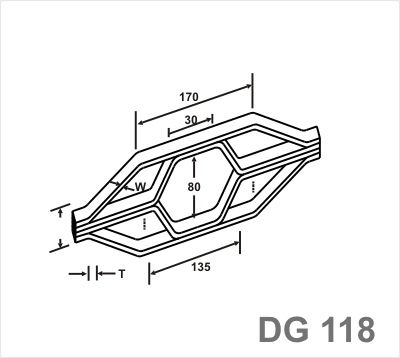

DG-118	-	80 mm	4.057

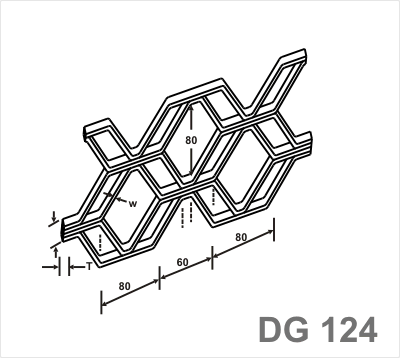

DG-124	70 mm	80 mm	4.638
DG-902	75 mm	72 mm	3.056

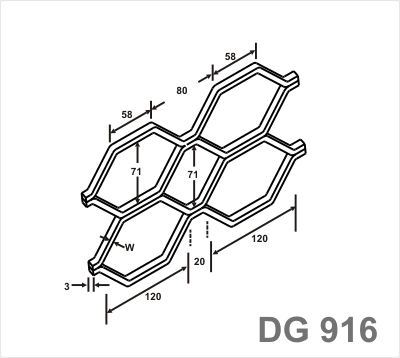

DG-916	114 mm	71 mm	2.959

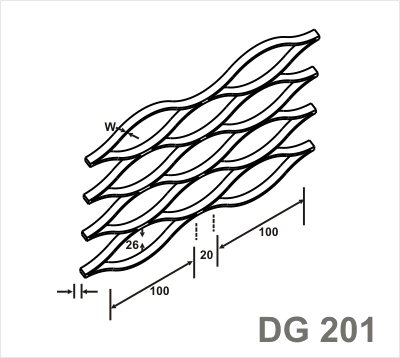

DG-201	101 mm	25 mm	5.358

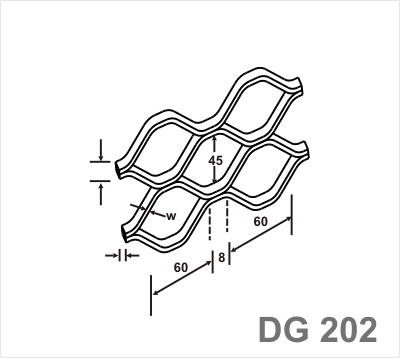

DG-202	60 mm	45 mm	4.121
DG-203	-	-	5.606

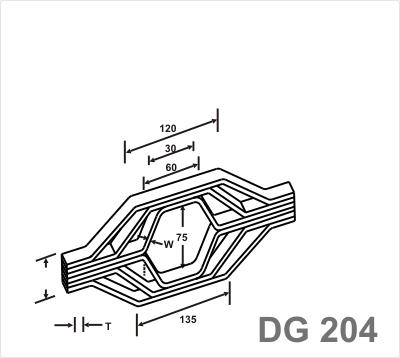

DG-204	-	-	5.154

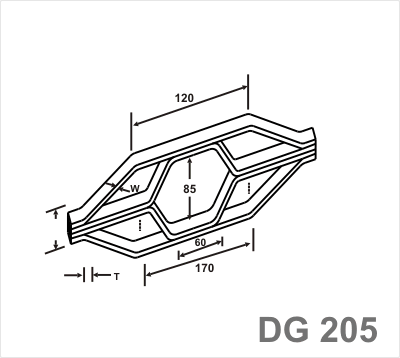

DG-205	-	-	4.207

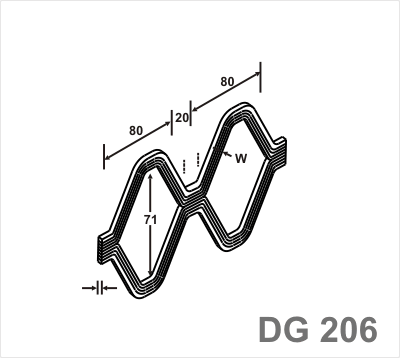

DG-206	90 mm	110 mm	3.852



    Tolerance ± 5%



DECOGRILLE (10 MM)



A]         TECHNICAL SPECIFICATIONS:



1.     Material                                                    Ø        Aluminium Alloy No.6063 - T6



2.     Ultimate tensile strength                          Ø         19kg/sq.m



3.     Elongation of 50mm GL                          Ø         14% Min.



4.     Yield strength (0.2%) Proof stress         Ø         6.5 Kg/Sq.mm min



5.     Brinell Hardness                                       Ø        (Typical) 50



6.     Modulus of elasticity                              Ø         Generally 7X10³ Kg/sq.m



7.    The anodizing will be carried out to the extent of 15 microns.



Please note Decogrille is made out of 10mm plate and finished Decogrille will have 10mm width and 5.2mm thick.



B]         STANDARD SIZES:

            Please refer to our attached Design catalogues.



C]         SPACING & WEIGHT


DESIGN	LENGTH	WIDTH (Expansion Size)	Weight /Sq.Mts (Kg)
DG-102	80 mm	66 mm	3.260
DG-103	113 mm	84 mm	2.625
DG-104	102 mm	99 mm	2.507
DG-107	100 mm	140 mm	3.572
DG-112	-	102 mm	3.766
DG-117	120 mm	75 mm	2.755
DG-118	-	80 mm	4.239
DG-124	70 mm	80 mm	4.487
DG-902	75 mm	72 mm	3.271
DG-916	114 mm	71 mm	3.131
DG-201	101 mm	25 mm	5.563
DG-202	60 mm	45 mm	4.282
DG-203	-	-	6.004
DG-205	-	-	4.326
DG-206	90 mm	110 mm	4.067
