ALUMINIUM CONDUCTORS

Conductor Division

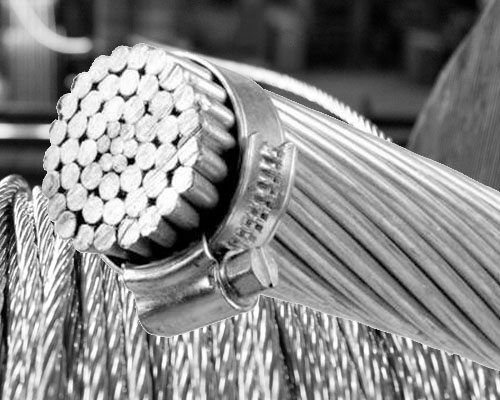

We manufacture a wide range of aluminum Conductors, upto 61 strands which include All Aluminium Conductors (AAC), All Aluminium Alloy Conductors (AAAC), Aluminium Conductors Steel Reinforced (ACSR) etc. Known as aluminum stranded conductor, these conductors are manufactured from electrolyte refined aluminum having purity of minimum 99.5% of aluminum.

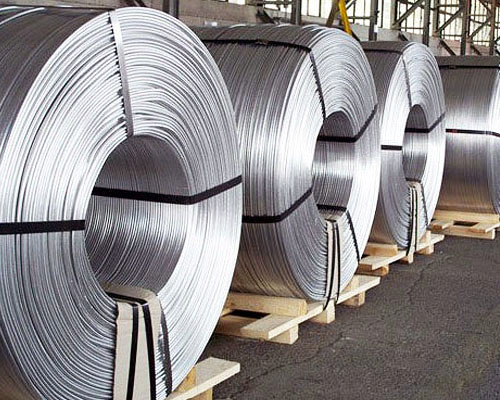

• This Rods are used for redrawing into Wires / Strips for manufacture of Cables, Conductors, Transformer Wires / Strips and various hardware / General Engg. Components.

TYPES:
  • AAC: All Aluminium Conductor
  • AAAC: All Aluminium Alloy Conductor
  • ACSR: Aluminium Conductor Steel Reinforced
  • ACAR: Aluminium Conductor Alloy Reinforced
  • AACSR: All Aluminium Alloy Conductor Steel Reinforced
  • AAAC Aster – All Aluminium Alloy conductor with Higher Strength,
  • ACSR /AS – Alumnium Conductor with Aluminium Claded Steel Reinforced.
High Ampacity Cooductor
  • AL59: Al 59 conductor, having 59 % Conductivity
  • ACSS: Aluminium conductor Steel Supported .
  • STACIR: Super Thermal Alumimium Conductor with INVAR steel Reinforced
  • ACC: Alumimnium Conductor with Composite Core

Comply with IS,IEC,BS,ASTM,NFC,DIN,AS JIS


SPECIFICATIONS:

ACSR

Alu Strands / Dia

Steel Strands / Dia

AAAC

Strands / Dia

Squirrel

6/2.11

1/2.11

Squirrel

7/2.00

Weasel

6/2.59

1/2.59

Weasel

7/2.50

Rabbit

6/3.35

1/3.35

Rabbit

7/3.15

Raccon

6/4.09

1/4.09

Raccon

7/3.81

Dog

6/4.72

7/1.57

Dog

7/4.26

Wolf

30/2.59

7/2.59

Coyote

19/3.15

Panther

30/3.00

7/3.00

Wolf

19/3.40

Zebra

54/3.18

7/3.18

Panther

19/3.94

Mosse

54/3.53

7/3.53

Zebra

37/4.00

Bersimis

42/4.57

7/2.54

Mosse

61/3.45







Bersimis

61/4.00
